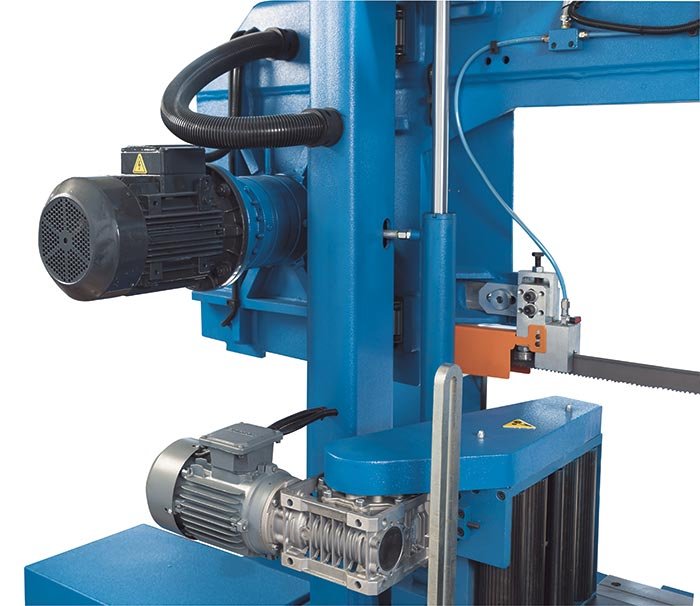

The models of the ABS-L series are fully automatic horizontal band saws for precisely straight sawing of large and heavy workpieces. A rigid dual column frame forms the heart of the extremely stable construction. Using the central control panel, you can regulate the saw frame feed, steplessly adjust the saw blade speed and machine the workpiece hydraulically. The robust automatic material feed does not need any electronics or programming and still offers high repeat and dimensional accuracy.
- Dual column design for superior stability
- Material feed system with workpiece guide rollers
- Hydraulic workpiece clamping
- Optical detection of the workpiece height
- Feed roller table 1.2 m (4 ft)
| CUTTING CAPACITIES | |
|---|---|
| Cutting capacity 0° (flat) (length x width) | 17 in x 15 in |
| Cutting capacity 0° (round) | 15 in |
| Cutting capacity 0° (square) | 15 in |
| Cutting speed infinitely variable | 65 fpm – 327 fpm |
| Stop length | 20 in |
| Accuracy of the feeding | 0.02 in |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 4 Hp |
| Motor rating hydraulic pump | 0.7 Hp |
| Motor rating feed | 0.3 Hp |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 115 in x 38 in x 66 in |
| Weight | 2750 lbs |
| Blade dimensions | 188.98 in x 1.34 in x 0.04 in |
