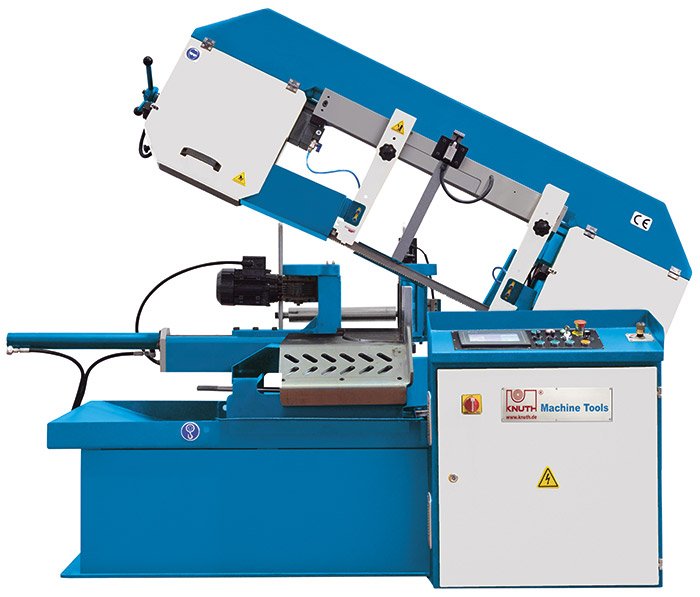

The ABS 350 C is a robust fully automatic band saw designed for maximum reliability. The model impresses with high-quality components and a heavy, solid machine frame. The automatic feed via driven rollers in the clamping jaws enables continuous operation, perfect for single piece and series production. The angle cutting feature increases its versatility, allowing it to cover a wider range of applications.

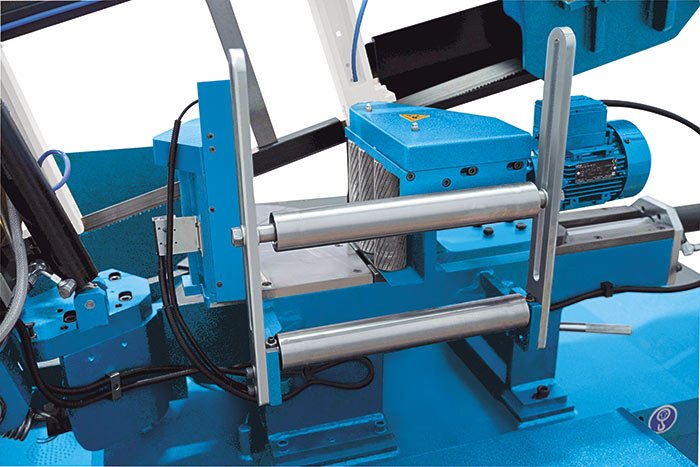

- Vice with feed rollers
- Angle cutting possibility for increased versatility

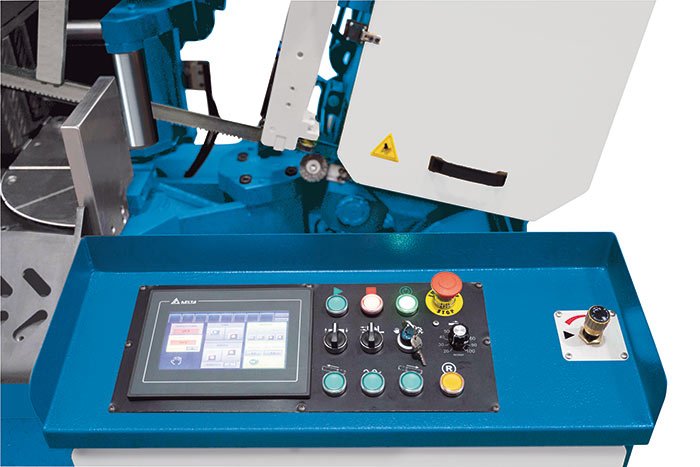

- Facile operation via touchscreen
- Height adjustment with switch to speed up the cutting process
- Workpiece counter to facilitate continuous production
- Manual top vise for bundle cutting
CUTTING CAPACITIES | |
---|---|
Cutting capacity 0° (round) | 14 in |
Cutting capacity 0° (flat) (length x width) | 16 in x 14 in |
Cutting capacity 0° (square) | 14 in |
Cutting capacity 30° (round) | 13 in |
Cutting capacity 30° (flat) (length x width) | 16 in x 14 in |
Cutting capacity 30° (square) | 13 in |
Cutting capacity 45° (round) | 13 in |
Cutting capacity 45° (flat) (length x width) | 11 in x 12 in |
Cutting capacity 45° (square) | 11 in |
Cutting speed | 65.4 fpm – 327 fpm |
DRIVE CAPACITY | |
---|---|
Motor rating main drive | 3 Hp |
Motor rating hydraulic pump | 0.5 Hp |
Motor rating coolant pump | 0.2 Hp |
Motor rating feed | 0.3 Hp |
MEASURES AND WEIGHTS | |
---|---|
Blade dimensions | 163.78 in x 1.34 in x 0.04 in |
Overall dimensions (length x width x height) | 97 in x 37 in x 80 in |
Weight | 2310 lbs |
