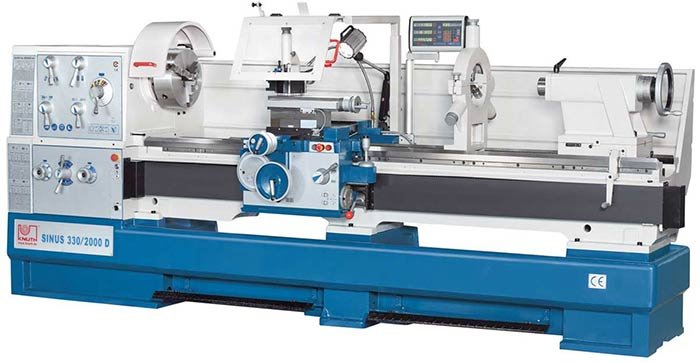

Sinus D is the largest series in the universal lathes segment. The construction follows a classic design but is based on a heavy, one-piece cast machine bed. As with heavy-duty lathes, the frictional connection between the motor and the spindle takes place via a manual multi-disc clutch. With integrated functions such as the removable bed bridge, rapid traverse and a taper turning device, this series offers optional solutions for machining long workpieces or large flanges.
- One-piece heavy casted bed for increased rigidity
- Sturdy headstock design with minimum vibrations
- Rapid feed on 2 axes ensure fast positioning
- Taper turning attachment for additional applications
- Well thought out safety protection
| WORKING AREA | |
|---|---|
| Workpiece length (max.) | 79 in |
| Turning diameter over bed | 26 in |
| Turning-Ø over support | 17 in |
| Turning diameter without gap bridge | 35 in |
| Gap bridge length | 13 in |
| Bed width | 16 in |
| TRAVELS | |
|---|---|
| Travel X-axis | 14.5 in |
| Travel Z1-axis | 9 in |
| Swing range of top slide | 45° |
| HEADSTOCK | |
|---|---|
| Spindle speed | 25 rpm – 1.600 rpm |
| Spindle bore | 4.1 in |
| Spindle mount | D1-8 |
| Spindle taper | 5 MT |
| RAPID FEED | |
|---|---|
| Rapid feed X-axis | 78.74 in/min |
| Rapid feed Z-axis | 157.48 in/min |
| FEED | |
|---|---|
| Feed X-axis | 0.00087 in/R – 0.02913 in/R |
| Feed Z-axis | 0.00173 in/R – 0.05827 in/R |
| THREADING | |
|---|---|
| Threading, metric | 0.45 mm – 120 mm |
| Threading, diametric | 0.88 DP – 160 DP |
| Threading, module | 0.0098 in – 2.3622 in |
| Threading, whitworth | (54) 7/16 – 80 TPI |
| TAILSTOCK | |
|---|---|
| Tailstock quill diameter | 4 in |
| Tailstock taper | 5 MT |
| Tailstock quill stroke | 9 in |
| Tailstock traverse adjustment | ± 0.5 in |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 10.1 Hp |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height)-height | 147 in x 49 in x 63 in |
| Weight | 6.380 lbs |
