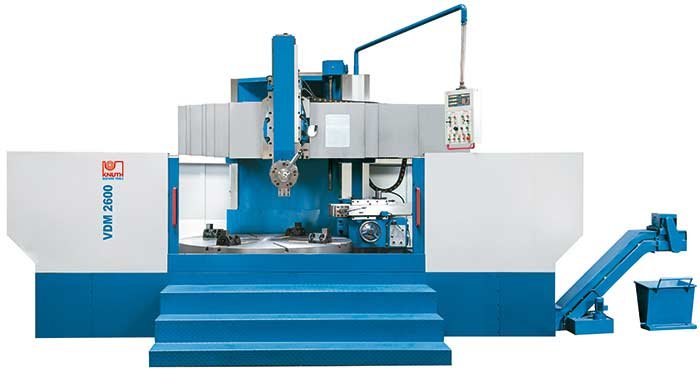

VDM 1600 S Vertical Lathe

Guaranteed Safe Checkout
  • No-Risk Money Back Guarantee!
  • No Hassle Refunds
  • Secure Payments

The VDM series of vertical lathes offers modern, conventional solutions for machining large workpiece diameters and heavy workpiece weights. Their design enables particularly easy and safe loading and unloading. The feed drive is a high-torque servo motor and a powerful hydraulic system clamps the crossbeam. The main drive provides high torque for heavy machining and a side support is available for machining the outer contour. The standard mounted 3-axis position indicator ensures precision.

  • Optimum assembly with crane and forklift
  • Infinitely variable feed control via servo motor
  • Long, sturdy vertical boom
  • Side support with boom and independent feed
  • Reduction gear drive for high torque
Rotating diameter (max.) 63 in
Turning diameter of upper tool holder 63 in
Turning diameter of side tool holder 55 in
Machining height (max.) 39 in
Swivel range of upper tool holder ± 30°
Workpiece length (max.) 39 in
Workpiece weight (max.) 11.000 lbs


Travel X1 axis, upper support 36 in
Travel Z1 axis , upper support 31 in
Travel W-axis, traverse 26 in
Travel X2 axis , side support 25 in
Travel Z2 axis , side support 35 in


Speed range 5 rpm – 160 rpm
Spindle torque (max.) 18.439 ft.lb.
Rotary table diameter 55 in


Rapid feed of upper support 71 in/min
Rapid feed of side support 71 in/min


Feed speed X-axis 0.0315 in/min – 3.3858 in/min
Feed speed Z-axis 0.0315 in/min – 3.3858 in/min
Feed speed W-axis 17 in/min


Tool holder 1.2 in x 1.6 in
Tool weight max. 110 lbs


Motor rating main drive 40.2 Hp
Motor rating X-axis 1.7 Hp
Motor rating Z-axis 2.41 Hp


Overall dimensions (length x width x height)-height 256 in x 166 in x 174 in
Weight 27.500 lbs
