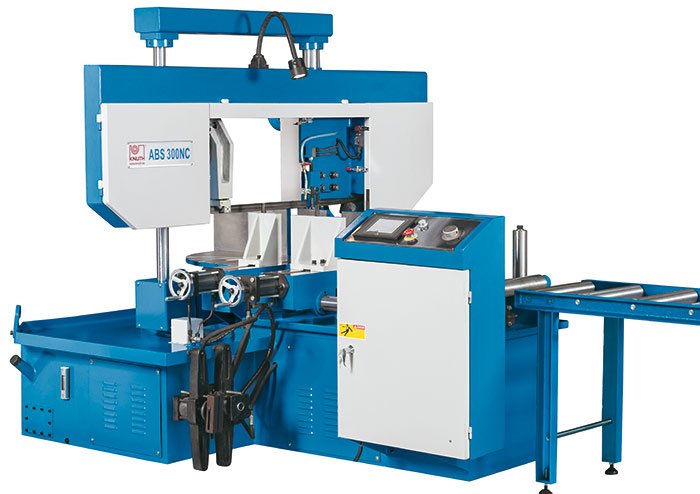

The ABS NC band saw series is a cost-effective, intelligent turnkey solution for sawing in series production. With NC control and simple programming, the ABS NC series meets all the requirements for efficient and flexible production. Cut pipes, profiles or solid material individually or as a bundle. The dual column construction eliminates vibrations and guarantees consistently high cutting accuracy even after many years of use.
- Stable double-column design
- Miter cutting with programmable cutting angle
- NC control with touchscreen for faster programming and set-up
- Hydraulic top vises for bundle cutting
| CUTTING CAPACITIES | |
|---|---|
| Feed per single stroke (max.) | 15.75 in |
| Cutting speed | 65.4 fpm – 261.6 fpm |
| Cutting capacity 0° (round) | 16 in |
| Cutting capacity 0° (flat) (length x width) | 20 in x 16 in |
| Cutting capacity 0° (square) | 16 in |
| Cutting capacity 30° (round) | 16 in |
| Cutting capacity 30° (flat) (length x width) | 16 in x 16 in |
| Cutting capacity 30° (square) | 16 in |
| Cutting capacity 45° (flat) (length x width) | 14 in x 16 in |
| Cutting capacity 45° (round) | 14 in |
| Cutting capacity 45° (square) | 14 in |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 5.4 Hp |
| Motor rating hydraulic pump | 1 Hp |
| Motor rating coolant pump | 0.1 Hp |
| MEASURES AND WEIGHTS | |
|---|---|
| Blade dimensions | 220.08 in x 1.61 in x 0.04 in |
| Overall dimensions (length x width x height) | 95 in x 91 in x 79 in |
| Weight | 6380 lbs |
