Conventional Horizontal Lathes
-
*On Order* Basic 170 Super Mechanics Lathe & 5 year parts warranty
$12,295.00The Basic 170 Super is a versatile lathe for single part production. Due to the large selection of optional accessories, these models are the best choice for repair, training and workshops of all kinds
- Compact design for small footprint
- Extensive standard equipment for a wide range of applications
- 3-axis position indicator with turning functions
WORKING AREA Center width 39.37 in Turning diameter over bed 13 in Turning-Ø over support 8 in TRAVELS Travel X-axis 6.7 in Travel Z1-axis 4 in Swing range of top slide ± 360° HEADSTOCK Spindle speed 70 rpm – 2.000 rpm Spindle bore 1.5 in Spindle mount Camlock D1-4 Spindle taper 5 MT FEED Feed X-axis 0.00055 in/R – 0.01496 in/R Feed Z-axis 0.00205 in/R – 0.0548 in/R THREADING Threading, metric (26) 0.02-0.3 Threading, whitworth (34) 4-56 TPI TAILSTOCK Tailstock quill diameter 1 in Tailstock taper 3 MT Tailstock quill stroke 4 in Tailstock traverse adjustment ± 0.5 in DRIVE CAPACITY Motor rating main drive 2 Hp MEASURES AND WEIGHTS Overall dimensions (length x width x height)-height 73 in x 27 in x 52 in Weight 1.144 lbs -
*On Order* Sinus 330/3000 D Precision Lathe
$52,795.00 -
*On Order* V-Turn 410 PRO – Universal Lathe
$25,500.00 -
*On Order* V-Turn 410/1500 – Precision Lathe
$23,250.00 -

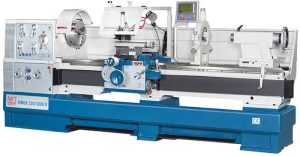

Sinus 330/1500 D Precision Lathe
$42,900.00 -
Sinus 330/2000 D
$46,395.00
