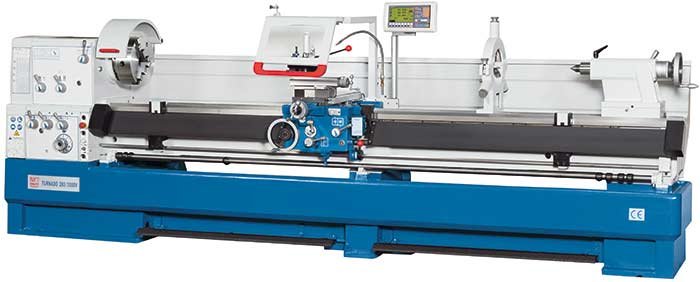

The turning machines of the Turnado series are characterized by their robust construction, powerful motor and versatility. For more than 20 years they have been among the tried and tested bestsellers of our conventional lathes. The V models are also equipped with an extended, infinitely variable speed range. In combination with the position indicator and integrated function of the constant cutting speed, you achieve a superior surface quality when facing. A high-quality quick-change toolholder system also lessens non-productive time and costs.
- Classic design with sturdy construction
- built to last
- High motor power with inverter and spindle speed display
- 3-axis position indicator with various turning functions
- Constant cutting speed for superior surface quality
- Extensive standard equipment package
| WORKING AREA | |
|---|---|
| Center height | 11 in |
| Workpiece length (max.) | 76 in |
| Turning-Ø over support | 14 in |
| Gap bridge length | 7 in |
| Bed width | 14 in |
| Turning diameter over gap bridge | 31 in |
| In-gap diameter over bed | 22 in |
| DETAILS | |
|---|---|
| Equipment | with position indicator and infinitely variable speed adjustment |
| TRAVELS | |
|---|---|
| Travel X-axis | 12.4 in |
| Travel Z1-axis | 5 in |
| Swing range of top slide | ± 52° |
| HEADSTOCK | |
|---|---|
| Spindle mount | Camlock D1-8 |
| Spindle bore | 3.1 in |
| Spindle taper | 7 MT |
| Spindle speeds | L 25-200 / H 200-1600 rpm |
| FEED | |
|---|---|
| Feed X-axis | 0.00079 in/R – 0.02256 in/R |
| Feed Z-axis | 0.00232 in/R – 0.0648 in/R |
| THREADING | |
|---|---|
| Threading, metric-stages | 47 |
| Threading, metric | 0.2 mm – 14 mm |
| Threading, module-stages | 39 |
| Threading, module | 0.0039 in – 0.2756 in |
| Threading, whitworth | (60) 2-112 TPI |
| Threading, diametric | (50) 4-112 DP |
| TAILSTOCK | |
|---|---|
| Tailstock taper | 5 MT |
| Tailstock quill stroke | 7 in |
| Tailstock quill diameter | 3 in |
| Tailstock traverse adjustment | ± 0.47 in |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 10.1 Hp |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height)-height | 132 in x 46 in x 58 in |
| Weight | 5.984 lbs |
