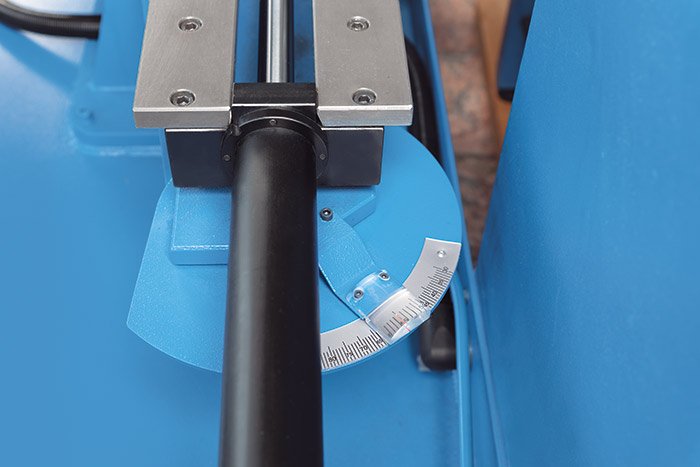

The band saw of the HB BS series is designed for precise miter cuts of up to 45 degrees and is ideal for workshops and production. With this model, it is not the vise with the material that is swiveled, but the saw frame. You can regulate the saw frame feed continuously via a hydraulic valve and also adjust it during processing. Pivoting, tensioning and clamping are carried out manually. The motor transmits its power low-maintenance and vibration-free via V-belt. The standard accessories of the machine also include a coolant device and a short roller conveyor for the material feed.
- Saw frame can swivel 45° for miter cutting
- Semi-automated operation
- Automated stroke height control with optical sensor
- Low machine and workpiece setup times
| CUTTING CAPACITIES | |
|---|---|
| Cutting capacity 0° (round) | 13 in |
| Cutting capacity 0° (square) | 13 in |
| Cutting capacity 0° (flat) (length x width) | 24 in x 13 in |
| Cutting capacity 45° (round) | 13 in |
| Cutting capacity 45° (square) | 13 in |
| Cutting capacity 45° (flat) (length x width) | 14 in x 13 in |
| Cutting capacity 60° (round) | 10 in |
| Cutting capacity 60° (square) | 9 in |
| Cutting capacity 60° (flat) (length x width) | 11 in x 8 in |
| Cutting speed infinitely variable | 65 fpm – 327 fpm |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 3 Hp |
| Motor rating coolant pump | 0.2 Hp |
| MEASURES AND WEIGHTS | |
|---|---|
| Blade dimensions | 163.78 in x 1.34 in x 0.04 in |
| Overall dimensions (length x width x height) | 83 in x 48 in x 53 in |
| Weight | 2200 lbs |
