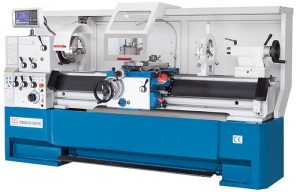

Turnado 230/1500 V Engine Lathe – with variable speed


Guaranteed Safe Checkout
  • No-Risk Money Back Guarantee!
  • No Hassle Refunds
  • Secure Payments

The turning machines of the Turnado series are characterized by their robust construction, powerful motor and versatility. For more than 20 years they have been among the tried and tested bestsellers of our conventional lathes. The V models are also equipped with an extended, infinitely variable speed range. In combination with the position indicator and integrated function of the constant cutting speed, you achieve a superior surface quality when facing. A high-quality quick-change toolholder system also lessens non-productive time and costs.

  • Classic design with sturdy construction
  • built to last
  • High motor power with inverter and spindle speed display
  • 3-axis position indicator with various turning functions
  • Constant cutting speed for superior surface quality
  • Extensive standard equipment package
Center height 9 in
Workpiece length (max.) 59 in
Turning-Ø over support 9 in
Gap bridge length 6 in
Bed width 12 in
Turning diameter over gap bridge 27 in
In-gap diameter over bed 18 in


Equipment with position indicator and infinitely variable speed adjustment


Travel X-axis 11.2 in
Travel Z1-axis 5 in
Swing range of top slide ± 52°


Spindle mount Camlock D1-6
Spindle bore 2.3 in
Spindle taper 6 MT
Spindle speeds L 30-600 / H 600-3000 rpm


Feed X-axis 0.00055 in/R – 0.03087 in/R
Feed Z-axis 0.00122 in/R – 0.06693 in/R


Threading, metric-stages 47
Threading, metric 0.1 mm – 14 mm
Threading, module-stages 39
Threading, module 0.0039 in – 0.2756 in
Threading, whitworth (60) 2-112 TPI
Threading, diametric (50) 4-112 DP


Tailstock taper 4 MT
Tailstock quill stroke 5 in
Tailstock quill diameter 2 in
Tailstock traverse adjustment ± 0.51 in


Motor rating main drive 10.1 Hp


Overall dimensions (length x width x height)-height 109 in x 43 in x 53 in
Weight 4.334 lbs
