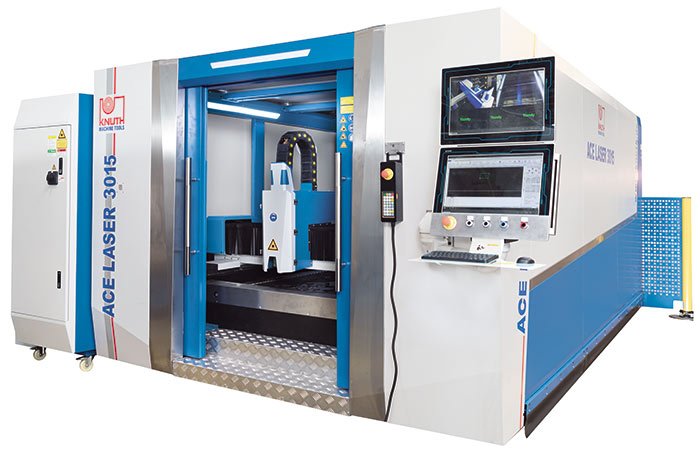

ACE Laser 3015 2.0 IPG

• This state-of-the-art laser cutting system features a gantry-style construction with drives on both sides and a large working area of 118 x 59 inch up to 236 inch x 79 inch that can accommodate most of the common plate sizes
• The Y axis portal features an aluminum die-cast construction with low weight and high rigidity for excellent dynamics
• Thermal treatment of the meticulously welded machine frame and all structural parts reliably eliminates production-related material stresses – ensuring long-lasting, precise alignment of all components. This ensures long-term and reproducible cutting edge accuracy and long machine life
• The precision linear guides require minimal maintenance and are designed for long-lasting precision and high cutting speeds
• High-precision rack-and-pinion gears on the Z and Y axis ensure superior and reliable positioning accuracy
• Powerful servo-motors on all axes
• For the safety of people and the environment, the cutting system is equipped with a machine housing and filter extraction system. Special protective glass windows make it possible to observe the cutting process

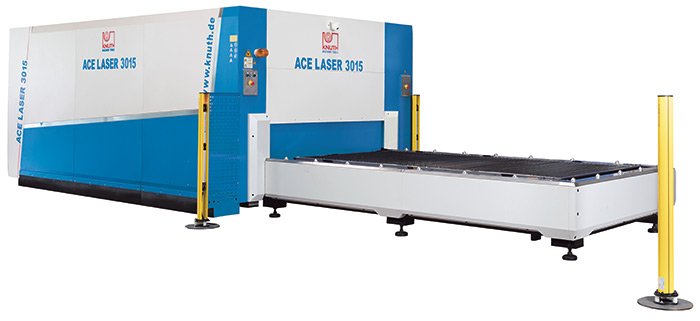

• An automatic shuttle table system minimizes production downtimes, since the table can be loaded and unloaded during the cutting process
• Perpendicularity or squareness tolerance for laser cutting acc. to DIN EN ISO 9013-1

Control

• Easy operation with user-friendly optimized interface
• A technology database includes cutting parameters and pre-set cycles for various metals
• The efficient processing of all cutting jobs is further supported by user-friendly software for the selection of process parameters
• Solenoid and proportional valves regulate the gas pressures (set in the control) during the cutting process

Cutting head

• High-quality cutter head made by Precitec with motorized focus position adjustment, integrated collision guard, and level control
• Maintenance-free beam guide is provided by a flexible fiberoptic cable and ensures a long tool life

Laser Sources

• The ytterbium fiber laser provides 1000 to 4000 W beam power, is made by the renowned manufacturer, IPG, and ensures maximum cut quality and productivity
• The maintenance-free laser source reduces maintenance and operating cost
