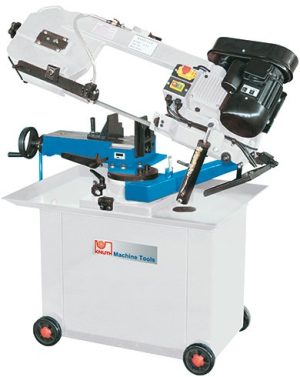

The band saw of the B S series is the entry-level model of the classic horizontal band saws and ideal for workshops and one-off production. Thanks to the swiveling saw frame, the machine can make miter cuts of up to 45 degrees. The saw frame feed is infinitely variable via a hydraulic valve and can also be readjusted during processing. The compact band saw has a low-maintenance and robust drive via V-belt and is equipped with a quick-release device and a coolant device.
- One-piece cast-iron saw frame
- 45° swiveling vise for miter cutting
- Compact design
- Hydraulic cylinder-adjustable saw frame feed
- Coolant unit in machine base
| CUTTING CAPACITIES | |
|---|---|
| Cutting capacity 0° (round) | 8 in |
| Cutting capacity 0° (square) | 8 in |
| Cutting capacity 0° (flat) (length x width) | 8 in x 8 in |
| Cutting capacity 45° (square) L | 5 in |
| Cutting capacity 45° (round) L | 5 in |
| Cutting capacity 45° (flat) L (length x width) | 8 in x 5 in |
| Belt speed | 79 / 135 / 200 / 269 fpm |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 1.5 Hp |
| MEASURES AND WEIGHTS | |
|---|---|
| Blade dimensions | 92.91 in x 0.79 in x 0.04 in |
| Overall dimensions (length x width x height) | 49 in x 26 in x 52 in |
| Weight | 418 lbs |
