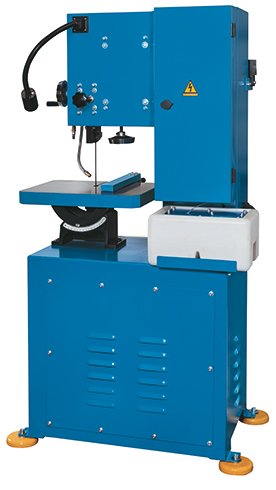

A vertical band saw is an asset to any workshop that processes steel. Sawing, notching and separating external and internal contours – the models in the VB A series are designed for all-round use and are characterized by their rigid construction, stable work table and variable belt guides.
- Swiveling table
- Infinitely variable belt speed
- Adjustable saw blade guide with carbide jaws
- Saw blade welder with shearing and grinding unit
| WORKING AREA | |
|---|---|
| Table dimensions | 28 in x 26 in x 39 in |
| Table with angle adjustment (l/r) | 15/30 deg |
| CUTTING CAPACITIES | |
|---|---|
| Cutting capacity height x throat | 12 in x 20 in |
| Cutting speed | 1075.83 fpm |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 2 Hp |
| Motor rating grinding | 0.1 Hp |
| Blade welder capacity | 2.4 kVA |
| MEASURES AND WEIGHTS | |
|---|---|
| Blade width | 0.12 in – 0.63 in |
| Blade length | 156.69 in – 159.45 in |
| Overall dimensions (length x width x height) | 50 in x 41 in x 78 in |
| Weight | 902 lbs |
