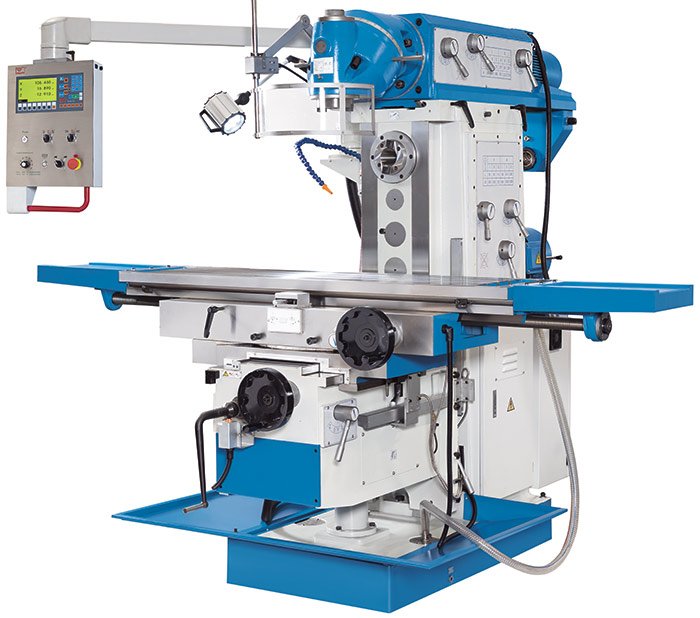

This universal milling machine is the biggest model from UWF series and stands out with its rigid construction, large working area, and extended travels on all axes. Designed as a versatile solution, it can easily handle large workpieces and is packed with features like universal milling head, swiveling table, horizontal axis which greatly increases its range of application.
- Universal cutter head swivels on 2 levels
- Horizontal milling spindle with its own drive
- Swiveling milling table
- Servo-feed on all axes with rapid feed
- Extensive standard Equipment
| WORKING AREA | |
|---|---|
| Number of T-slots | 3 positions |
| Table dimensions | 63 in x 14 in |
| Table load capacity (max.) | 1.100 lbs |
| T-slot (width x spacing) | 0.71 in x 3.15 in |
| TRAVELS | |
|---|---|
| Travel X-axis | 51.2 in |
| Travel Y-axis | 12 in |
| Travel Z-axis | 16 in |
| MILLING HEAD | |
|---|---|
| Speed range-stages | 12 |
| Speed range | 60 rpm – 1.750 rpm |
| Spindle mount | ISO 50 |
| Swivel angle | 360° |
| Upper beam travel | 22 in |
| Spindle center-to-table distance | 7 in – 23 in |
| RAPID FEED | |
|---|---|
| Rapid feed X-axis | 47.24 in/min |
| Rapid feed Y-axis | 31.5 in/min |
| Rapid feed Z-axis | 23.62 in/min |
| HORIZONTAL MILLING SPINDLE | |
|---|---|
| Spindle speed (horizontal)-stages | 12 |
| Spindle speed (horizontal) | 60 rpm – 1.800 rpm |
| Spindle mount | ISO 50 |
| Horizontal spindle-to-table surface distance | 1 in – 17 in |
| Spindle axis-to-top beam distance | 8 in |
| FEED | |
|---|---|
| Feed speed X-axis | 1.1811 in/min – 29.5275 in/min |
| Feed speed Y-axis | 1 in/min – 20 in/min |
| Feed speed Z-axis | 0.5906 in/min – 14.7638 in/min |
| DRIVE CAPACITY | |
|---|---|
| Motor rating horizontal spindle | 7.4 Hp |
| Motor rating vertical spindle | 5.4 Hp |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height)-height | 100 in x 83 in x 79 in |
| Weight | 6.490 lbs |
