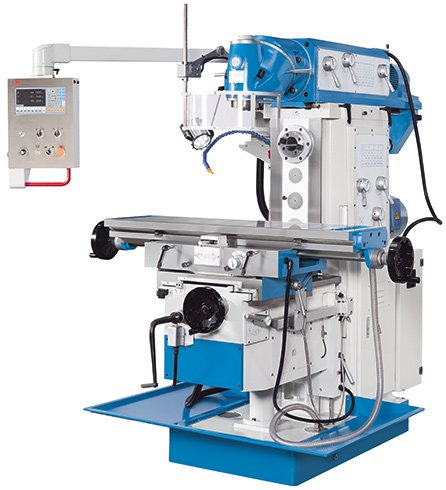

UWF 5 Universal Milling Machine

$43,725.00

Guaranteed Safe Checkout
  • No-Risk Money Back Guarantee!
  • No Hassle Refunds
  • Secure Payments

This universal milling machine is one of the top models of the UWF series, which is characterized by a large work area, universal milling head and horizontal spindle. The more powerful drive, the increased speed range and the infinitely variable servomotor feed extend the application range of the UWF 5. Your milling head can be swiveled on two planes and the horizontal spindle has its own drive with a finely graduated gear shift. With its extensive equipment, this model is perfect for repair shops as well as training and production departments.

  • Universal cutter head swivels on 2 levels
  • Horizontal milling spindle with its own drive
  • Swiveling milling table
  • Servo-feed on all axes with rapid feed
  • Extensive standard equipment
WORKING AREA
Table dimensions 52 in x 14 in
Table load capacity (max.) 1.100 lbs
Number of T-slots 3 positions
T-slot (width x spacing) 0.71 in x 3.15 in



TRAVELS
Travel X-axis 29.5 in
Travel Y-axis 11 in
Travel Z-axis 15 in



MILLING HEAD
Speed range 60 rpm – 1.750 rpm
Spindle mount ISO 50
Swivel angle 360°
Upper beam travel 22 in
Spindle center-to-table distance 7 in – 22 in



RAPID FEED
Rapid feed X-axis 47.24 in/min
Rapid feed Y-axis 31.5 in/min
Rapid feed Z-axis 23.62 in/min



HORIZONTAL MILLING SPINDLE
Spindle speed (horizontal) 60 rpm – 1.800 rpm
Spindle mount ISO 50
Throat 15 in – 37 in



FEED
Feed speed X-axis 1.1811 in/min – 29.5275 in/min
Feed speed Y-axis 1 in/min – 20 in/min
Feed speed Z-axis 0.5906 in/min – 14.7638 in/min



DRIVE CAPACITY
Motor rating horizontal spindle 7.4 Hp
Motor rating vertical spindle 5.4 Hp
Motor rating X axis feed 2 Hp
Motor rating Y axis feed 2 Hp
Motor rating Z axis feed 2 Hp
Motor rating coolant pump 0.1 Hp



MEASURES AND WEIGHTS
Overall dimensions (length x width x height)-height 71 in x 83 in x 79 in
Weight 6.270 lbs
