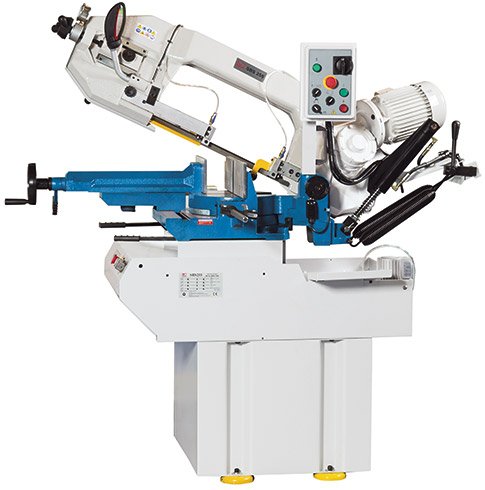

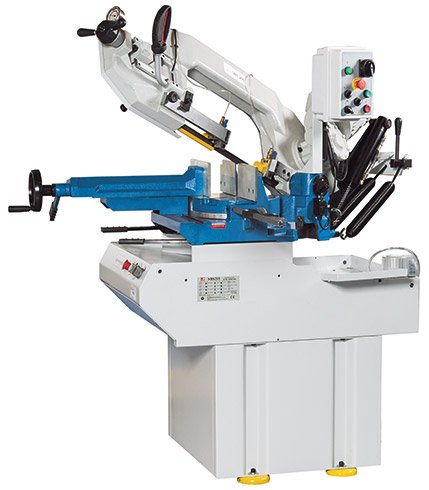

The SBS Series Universal Workshop Band Saws are compact machines with swiveling saw frames. The saw frame swivels to right and to the left. The user can guide the saw frame by hand or via the hydraulic valve controlled hydraulic feed. Their design and equipment make these machines very suitable for efficient machining of small batches.
- One-piece cast-iron saw frame
- Rigid vise with long stroke
- High cutting capacity
- Compact design
- Quick-action angle adjustment left and right
| CUTTING CAPACITIES | |
|---|---|
| Cutting capacity 0° (round) | 10 in |
| Cutting capacity 0° (square) | 9 in |
| Cutting capacity 0° (flat) (length x width) | 12 in x 9 in |
| Cutting capacity 45° (square) L | 6 in |
| Cutting capacity 45° (flat) L (length x width) | 6 in x 6 in |
| Cutting capacity 45° (round) L | 6 in |
| Cutting capacity 45° (square) R | 8 in |
| Cutting capacity 45° (round) R | 8 in |
| Cutting capacity 45° (flat) R (length x width) | 8 in x 9 in |
| Cutting capacity 60° R (round) | 5 in |
| Cutting capacity 60° R (square) | 5 in |
| Cutting capacity 60° R (flat) (length x width) | 5 in x 6 in |
| Cutting speed | 115/ 246 fpm |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 2 Hp |
| MEASURES AND WEIGHTS | |
|---|---|
| Saw blade dimensions | 108 in x 1 in x 0.9 mm |
| Overall dimensions (length x width x height) | 68 in x 29 in x 45 in |
| Weight | 825 lbs |
