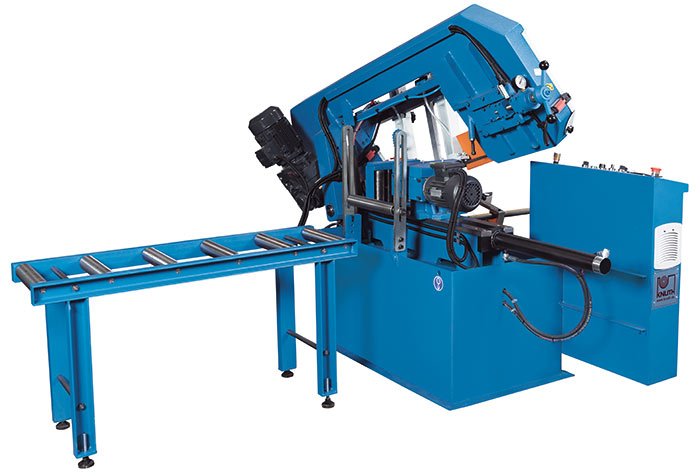

The ABS 320 B is a fully automatic band saw designed for maximum reliability. The model impresses with high-quality components and a heavy, solid machine frame. The automatic feed via driven rollers in the clamping jaws enables continuous operation, perfect for single piece and series production. This inexpensive and sturdy production solution is very popular due to its high efficiency and ease of use. After more than 15 years it is still one of the best-selling KNUTH band saws.
- Material feed through feed rollers in the vice
- Height stroke limitation reduces unproductive idle time
- Workpiece counting for series production
- Manual top vise for bundle cutting
| WORKING AREA | |
|---|---|
| Roller guide length | 47 in |
| Feed rollers | 6 positions |
| CUTTING CAPACITIES | |
|---|---|
| Cutting capacity 0° (round) | 13 in |
| Cutting capacity 0° (square) | 12 in |
| Cutting capacity 0° (flat) (length x width) | 13 in x 8 in |
| Stop length | 20 in |
| Cutting speed | 65.4 fpm – 327 fpm |
| Accuracy of the feeding | 0.02 in |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 3 Hp |
| Motor rating hydraulic pump | 0.5 Hp |
| Motor rating coolant pump | 0.2 Hp |
| Motor rating feed | 0.3 Hp |
| MEASURES AND WEIGHTS | |
|---|---|
| Blade dimensions | 144.09 in x 1.06 in x 0.04 in |
| Overall dimensions (length x width x height) | 73 in x 34 in x 50 in |
| Weight | 1452 lbs |
