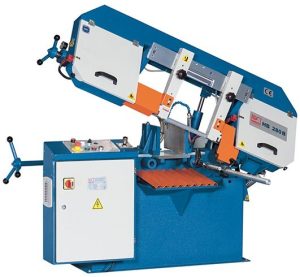

The band saw of the HB B series is the entry-level model of the large workshop band saws. All functions are manual. The machine can also make miter cuts up to 45 °, whereby the vise with the material must be swiveled. Low maintenance and robust, the speed can be regulated by an inverter. The saw frame feed is steplessly adjustable via a hydraulic valve and can also be adjusted during processing. Ideal for workshop and one-off production.
- Infinitely variable hydraulic saw feed
- Infinitely variable belt speed
- Vise rotates 45° for miter cutting
- Built-in coolant system with chip tray
| CUTTING CAPACITIES | |
|---|---|
| Cutting capacity 0° (round) | 11 in |
| Cutting capacity 0° (square) | 11 in |
| Cutting capacity 0° (flat) (length x width) | 14 in x 8 in |
| Cutting capacity 45° (round) | 9 in |
| Cutting capacity 45° (square) | 8 in |
| Cutting capacity 45° (flat) (length x width) | 9 in x 7 in |
| Cutting speed infinitely variable | 65 fpm – 327 fpm |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 2 Hp |
| Motor rating coolant pump | 0.2 Hp |
| MEASURES AND WEIGHTS | |
|---|---|
| Blade dimensions | 133.86 in x 1.06 in x 0.04 in |
| Overall dimensions (length x width x height) | 71 in x 34 in x 40 in |
| Weight | 1166 lbs |
