2-Axis DRO Package for Bridgeport EZ-Trak 30″ x 12″

Matching Machine Model: Bridgeport EZ-Trak (Table Size = 9″ x 48″)

X-Axis Travel Length: 30″ (762 mm)

Y-Axis Travel Length: 12″ (305 mm)

Includes:

• 2-Axis DRO Readout

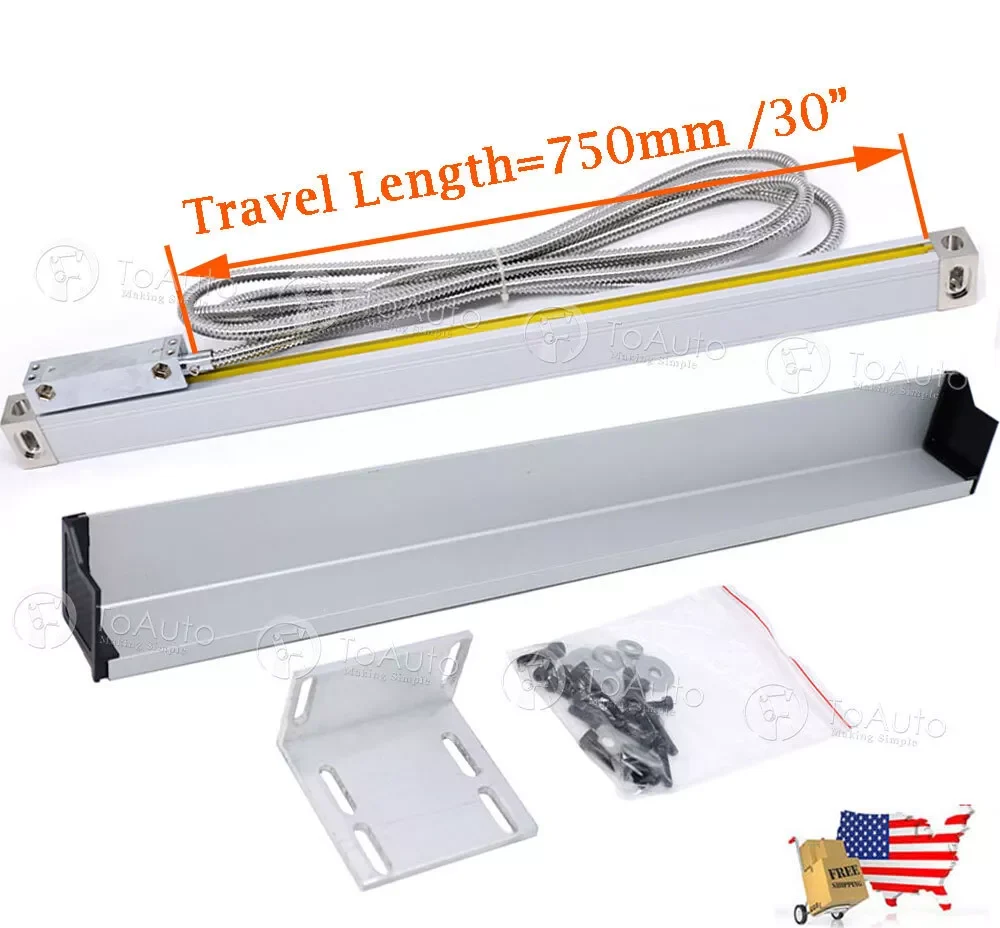

• X-axis Reader Head Linear Scale
• Y-axis Reader Head Linear Scale

NOTE: Package is based on travel length. Overall length of the linear scale is typically 5.5 inches longer than the specific travel lengths for each axis.

Key Features:

• Supply Voltage Range: AC 80V-220V; 50/60Hz
• Power Consumption: Low at just 15VA, ensuring energy efficiency.
• Operating Temperature: 0°C to 45°C for versatile use in various environments.
• Storage Temperature: Withstands extreme temperatures from -30°C to 70°C.
• Humidity Tolerance: Reliable performance in conditions with less than 90% relative humidity.
• Input Signal Compatibility: Accepts TTL square wave signals for precise readout operations.

Applications:

This 2-Axis DRO Kit is an essential tool for improving precision and productivity across various machines, including:

• Lathes
• Cylindrical Grinders
• Milling Machines
• Surface Grinders
• Boring Mills
• Manual and CNC Machines

CNC machines can even benefit from this DRO when in manual mode, simulating DRO functions directly on the control panel.

Complete Package List:

• 2PCS Linear Scale
• 1PCS 2-Axis DRO Display: Includes a sturdy holder and mounting bracket.
• 2PCS Mounting Bases: Ensure secure installation of the scales.
• 2PCS Protective Covers: Shield the scales from debris and damage.
• Complete Installation Screws for hassle-free setup.
• English User Manual for easy installation and usage instructions.

Top Benefits:

• Digital Precision Display: Eliminates machine backlash and enhances accuracy.
• Advanced Trigonometric Functions: Ideal for intricate and high-precision tasks.
• 11.6″ Wide Display: Exceptional readability, even from a distance.
• Versatile DRO Functionality: Featuring pitch circle calculator, diameter/radius conversion, absolute/incremental toggle, and inch/metric conversion.
• Efficiency Boost: Spend less time checking machine calibration and more time working.
• Unmatched Support: Lifetime free technical support, 2-year warranty, and 30-day return policy ensure peace of mind.

Technical Specifications:

• Input Signal Frequency: Less than 5 MHz for high-speed data processing.
• Resolution (Length): 5µm (0.005mm / 0.0002″) for precise measurements.
• Resolution (Angle): 0.0001 per pulse for ultra-fine angle detection.
• Cable Length: 3 meters for flexible machine integration.
• Unit Dimensions: 283mm x 178mm x 70mm (11.2″ x 7″ x 2.8″).
• Communication Protocol: DB9 (RS232) for reliable data transfer.
• Display Language: English for ease of use.
• Data Backup: Power-off memory function using E2PROM for up to 10 years, ensuring data retention.
• Cycle Life: Rated for five million operational cycles.

Boost Your Machine’s Performance Today:

Upgrade your workshop with this 2-Axis DRO kit designed to streamline operations and significantly improve the accuracy of your metalworking projects. Whether you’re working on a lathe or milling machine, our DRO kit delivers the precision and functionality needed to enhance your workflow.

Take advantage of our lifetime technical support and industry-leading 2-year warranty for a worry-free investment in superior machining performance.

Frequently Asked Questions (FAQ)

Q1: Are the 10″ and 40″ measurements for travel length or total length?
A: Both measurements refer to the travel length.

Q2: How precise is the DRO?
A: The DRO measures with a precision of 0.0002 inches.

Q3: Can I cut the scales to fit my machine?
A: It’s not advisable. Cutting the scales may cause them to stop functioning correctly.

Q4: Is an English user manual included?
A: Yes, an English user manual is included for easy setup and operation.

Q5: Do you offer a more affordable DRO with a precision of 0.0001″?
A: Yes, we do offer a model with 0.0001″ precision. Contact us for more details.

Q6: Is it easy to install the scales and DRO?
A: Yes, installation is simple. Request a mounting video or find one on YouTube for additional guidance.

Q7: Can I use the scales directly on my machine without the DRO?
A: Check the pin configuration (1 through 9) to ensure compatibility with your machine.

Q8: How do I switch between using the DRO on different machines?
A: We can provide a video tutorial that demonstrates how to switch between milling machines, lathes, or grinders. Contact us for details.

Q9: How long is the warranty on this DRO?
A: We offer a 2-year warranty, providing peace of mind with your purchase.

Affordable Alternatives to Newall DRO Packages

Looking for a more cost-effective replacement for premium DRO kits like the Newall DP500 or DP700? Our 2-Axis DRO package offers all the essential features at a fraction of the cost. Experience the same level of precision without breaking the bank.

Why Choose Our DRO Kits Over Newall?

• Cost Efficiency: Get high-performance functionality at a significantly lower price.
• Advanced Functions: Includes trigonometric functions, radius/diameter conversions, and incremental toggles.
• Durability & Protection: Protective covers ensure durability in tough environments.

Readability & Ease of Use: Large displays for easy monitoring and adjustments across various machines.
